Silver in the structure of Structure and Mechanism of the Heavy Metal Transporter Cusa (pdb 3kso)






The binding sites of Silver atom in the structure of Structure and Mechanism of the Heavy Metal Transporter Cusa (pdb code 3kso). This binding sites where shown with 5.0 Angstroms radius around Silver atom.
The 3kso structure was solved by C.-C.SU, with X-Ray Crystallography technique, brief refinement statistics is given in the table below:
Resolution (A)35.5-4.4
Space groupH32
a (A)179.986
b (A)179.986
c (A)286.018
alpha (°)90.00
beta (°)90.00
gamma (°)120.00
Rfactor (%)26.8
Rfree (%)32.1


Silver Binding Sites:

Silver binding site 1 out of 1 in 3kso


Silver binding site 1 out of 1 in 3kso
Click to enlarge
stereopicture of Silver binding site 1 out of 1 in 3kso
Click to enlarge

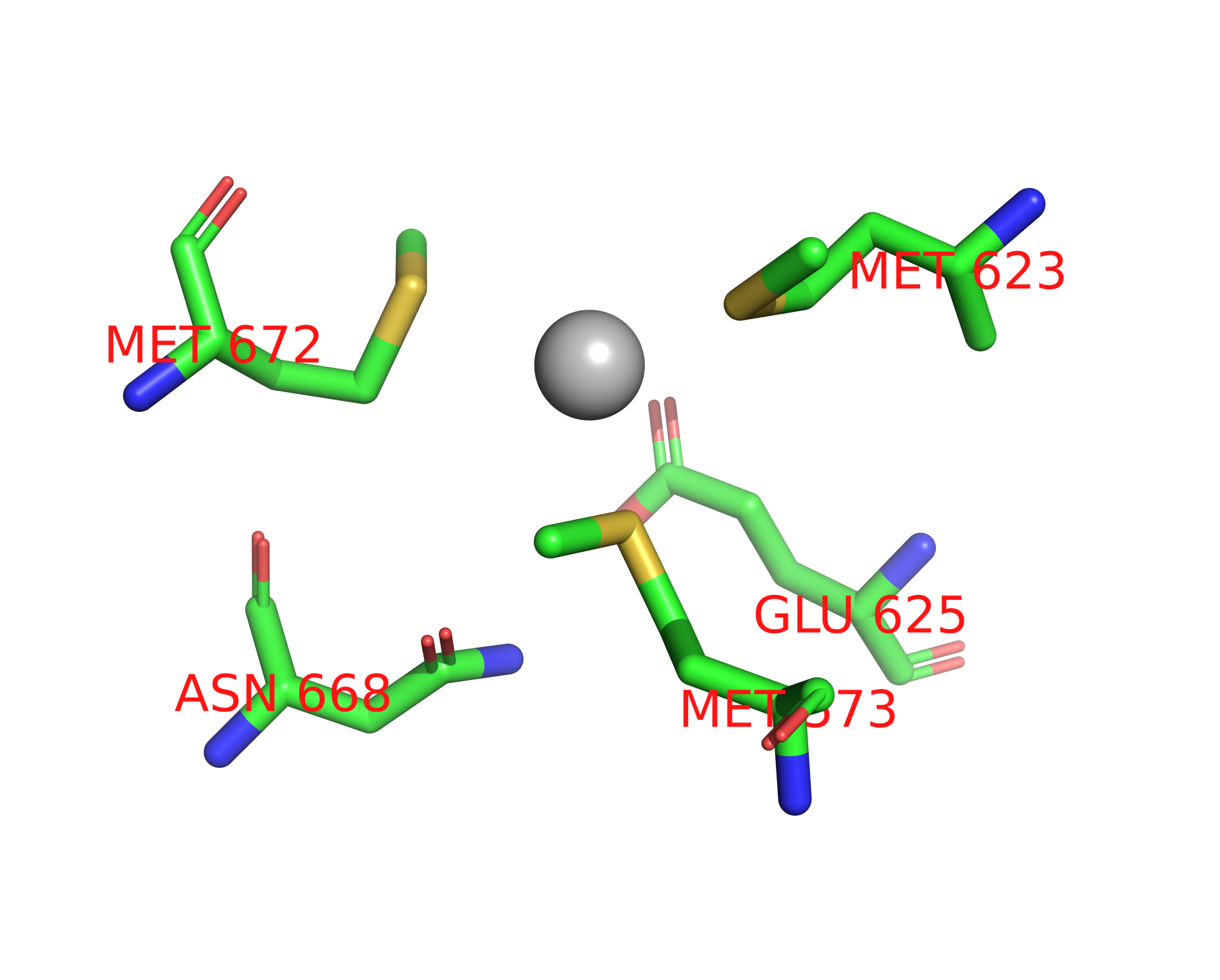

Mono- and Stereo- picture of 5.0 Angstrom coordination sphere 1 of Silver in the PDB 3kso. Coordination sphere was calculated for all residues within 5.0 Angstroms distance from the central Silver atom, shown by VdW sphere
Residues shown as a stick model or VDW spheres: A: Met573, A: Met623, A: Glu625, A: Asn668, A: Met672,

conact list:


AtomAtomDistance (A)
AgCE A:Met5733.28
AgCG A:Met5734.33
AgSD A:Met5732.59
AgCB A:Met6234.91
AgCE A:Met6234.35
AgCG A:Met6233.55
AgSD A:Met6232.69
AgOE1 A:Glu6253.91
AgOE2 A:Glu6254.73
AgCD A:Glu6254.18
AgCG A:Glu6254.49
AgOD1 A:Asn6684.86
AgCE A:Met6724.20
AgCG A:Met6723.75
AgSD A:Met6723.14
